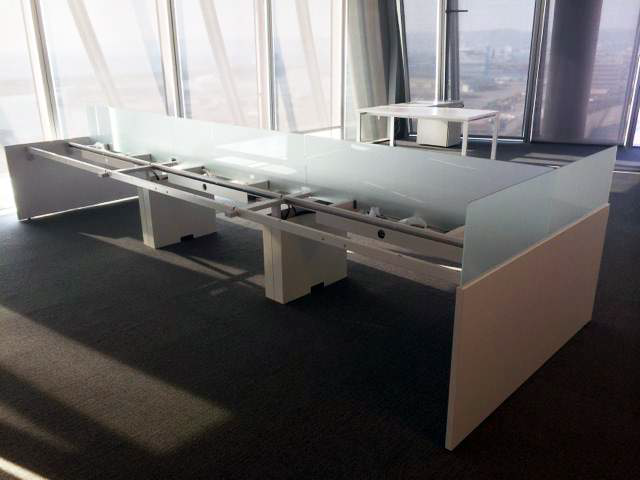

Making of furniture for executive offices of a French headquarters of well known international oil group.
The project includes both the design and installation of desks with wooden partitions, glass screen and ducts to
electrify the frame.
Making of a table for an important multinational meeting room in the soft drink sector which matched with SPMETALLO design the optimal solution for the customer's needs.
Perimeter structure for 18mm thickness built-in top composed of single items (legs, beams, central crossbars)
- 50x50mm triangular profile Legs realized in press-folded metal sheet
- h50mm Perimeter beams realized by coupling a 30×30 profile with an external press-folded metal sheet
- Central beams of stiffening realized in press-folded metal sheet
- Finishing: epoxy powder paint or chrome plating by galvanic process
- Accessories: PC stand, brackets for screen support on the three sides , cable ducts
Uniframe is a single and closed frame made with a 30×20 section tube, 2mm thickness. The top leans on the frame and is fixed with M6 screws. Thanks to a sheet metal adapter it’s possible to use the same frame with our 2 vertical legs MAMMUT and KEFREN
Gallery not found.
Dimensions in mm. 400W 510D 510H
Gross weight Kg. 14
Internal dimensions of drawer 352W 470D 88H
Partial extraction roller slides 4/5
Loading capacity of the drawer Kg.15
Volume mc 0.126
16 pcs/pallet 100×120 h230
The frame is produced with a square profile of 45mm. Laser-worked it ensures maximum precision. There is 10mm of space between the wooden top and the stand. The EDGE stand frame is robust and stable even if you decide to install a thin top of 18mm thickness because it uses 2 rectangular beams with the 60×30 profile. These beams are laser-worked too.
Metal pedestals to support methacrylate or glass panels of 5mm thickness. The metal structures can be combined with a modular system or they can be independent. Easy to install they can be moved according to your needs even after being installed.
We know how to perfectly combine the speed of robotic welding with the craftsmanship of manual welding. Our products never lose sight of what “Made in Italy” is in the world.
Elements of furnishing components produced by laser cutting sheet metal.
No technology will ever be able to compete with the experience and mastery of our “qualified” operators
